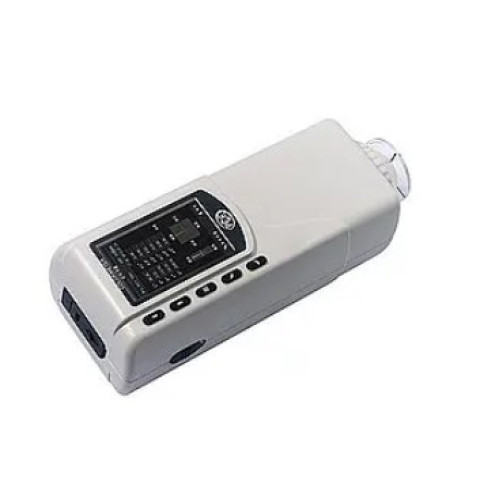

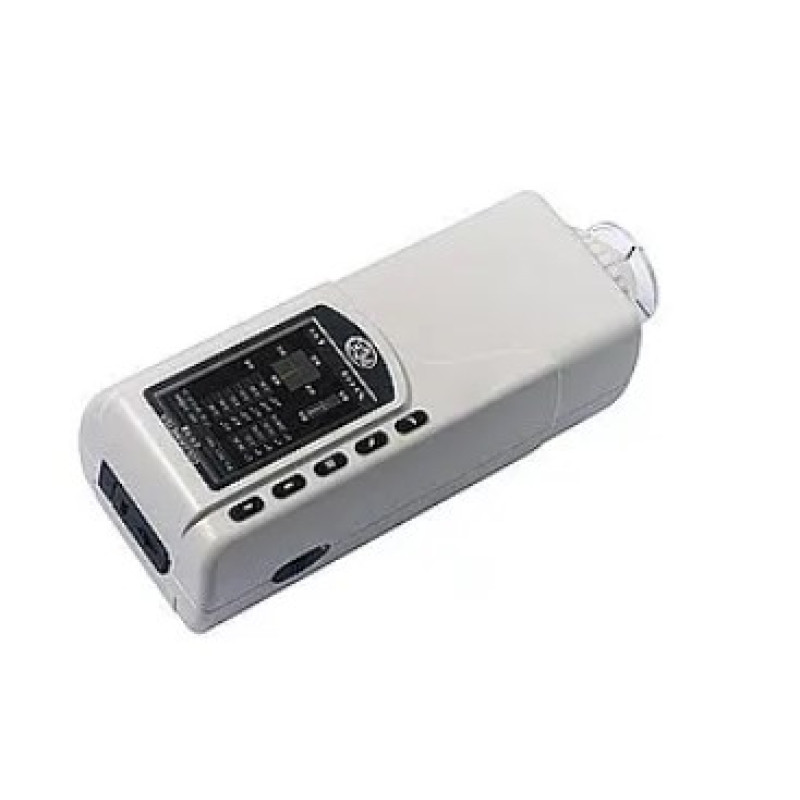

Colorimeter PCE-CSM 2 in Pakistan
- Brand: PCE Instruments Germany
- Product Code: PCE-CSM 2
- Availability: Pre-Order
-
Rs.0
Colorimeter for quality control / digital software included / Li-ion battery / Black-and-white contrast calibratable / Measuring modes for various parameters / Color analysis of black, white, red, green, yellow, and blue.
Specification:
Measuring apertures | Ø 8 mm (PCE-CSM 2) |
Sensor | Silicium-photodiode |
Color spaces | CIEL*a*b*C*h |
Formula for indifference in color | ΔE*ab |
Light source | D65 |
Type of light source | LED |
Data memory | 100 standards, 20,000 samples |
Errors between each colorimeter | ≤0.80ΔE*ab |
| Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
Weight | 500 g / 17.6 oz |
Dimensions | 205 x 67 x 80 mm / 8.07 x 2.6 x 3.14 in |
Power Supply | Rechargeable lithium-ion-batteries |
Charging time | 8 hours |
Battery operation time | Approx. 5000 measurements |
Lifetime of lamp | 5 years, more than 1.6 million measurements |
Temperature range | 0 ... 40°C / 32 ... 104°F |
Relative humidity | 0 ... 85%, non-condensing |
Delivery Scope:
1 x Colorimeter PCE-CSM 2
1 x USB cable
1 x Battery
1 x AC power adapter
1 x Wristband
1 x Standard calibration plate white
1 x Computer software
1 x Instruction manual
1 x Soft carry case
Download the Manual of PCE-CSM 2
Download the Data Sheet of PCE-CSM 2
