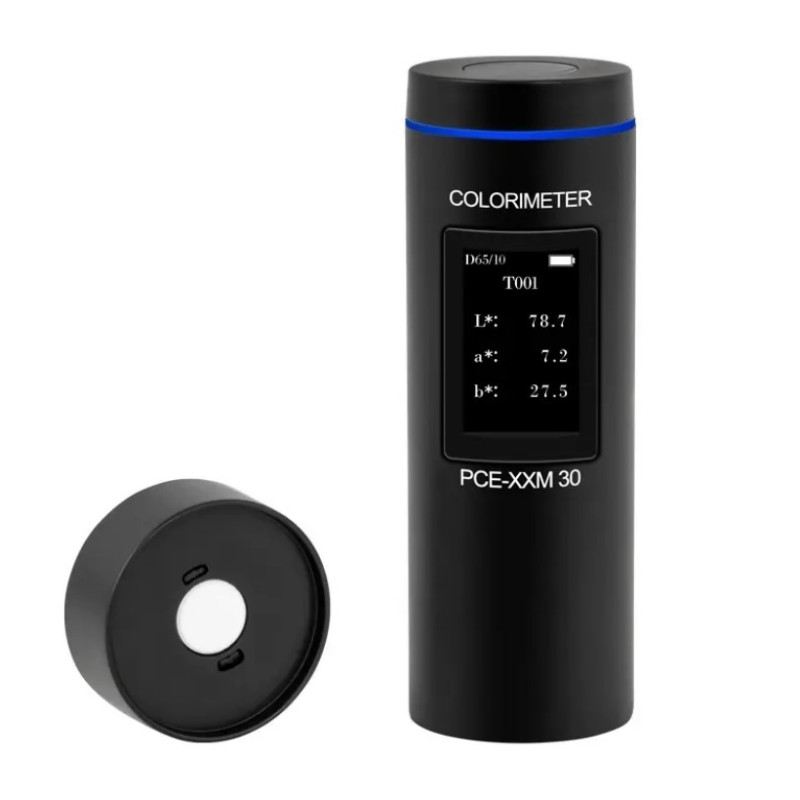

Color Meter PCE-XXM 30 in Pakistan
- Brand: PCE Instruments Germany
- Product Code: PCE-XXM 30
- Availability: Pre-Order
-
Rs.0
Color Meter with Bluetooth interface / Pass-fail function Approx. 10,000 measurements per battery charge / Wavelength range 400 to 700 nm /Measured value memory / Color ranges CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, RGB.
Specification:
| Measurement geometry and angle | D/8-SCI |
| Calibration | black and white |
| Color ranges | CIE-LAB, CIE-LCh, HunterLab, |
| CIE-Luv, XYZ, Yxy RGB | |
| Formulas for color inequality | ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00 |
| WI | ASTM E313-00, ASTM E313-73, |
| CIE/ISO, AATCC, Hunter, Taube Berger Stensby | |
| YI | ASTM D1925, ASTM E313-00,ASTM E313-73 |
| Blackness | My, dM |
| Color shade | ASTM E313-00 |
| Color density | CMYK (A, T, E, M), Metamerism Index Milm, Munsell, |
| opacity, dye strength, color strength | |
| Type of light source | LED (full and visible wavelength range) |
| Light source | A, B, C D50, D55, D65, D75, F1 … |
| F12, CWF, U30, DLF, NBF, TL83, TL 84, U35 | |
| Measuring angle | 2°, 10° |
| Repeatability | ΔE* from ≤0.1 |
| Difference between two different | |
| color meters (IIA) | ΔE* 00 <0.4 |
| Accuracy refers to the average measurement of 12 BCRA Series II references | |
| Measurement opening | Ø8 mm / 0.31" |
| Wavelength interval | 10 mm / 0.39" |
| Wavelength | 400 … 700 nm |
| Memory | 10 measured values, redundant |
| Measurement time | <1 s |
| Display | LC display, 135 x 240 p, 1.14" |
| Interfaces | Bluetooth, USB-C |
| Power supply | 5 V DC, 1 A |
| Battery life | ca. 10,000 measurements |
| Ambient conditions | 5 … 45 °C / 41 … 113 °F, <90 RH, non-condensing |
| Dimensions | Ø35 x 130 mm / Ø1.37 x 5.11" |
| Weight | 87 g / 3 oz |
Delivery Scope:
1 x Color meter PCE-XXM 30
1 x White reference
1 x USB-C cable
1 x Instruction manual
