Closing Force Transducer FM300 BT for elevator doors, machine protection devices in Pakistan
- Brand: PCE Instruments Germany
- Product Code: FM300BT-SY-25-750
- Availability: Pre-Order
-
Rs.0

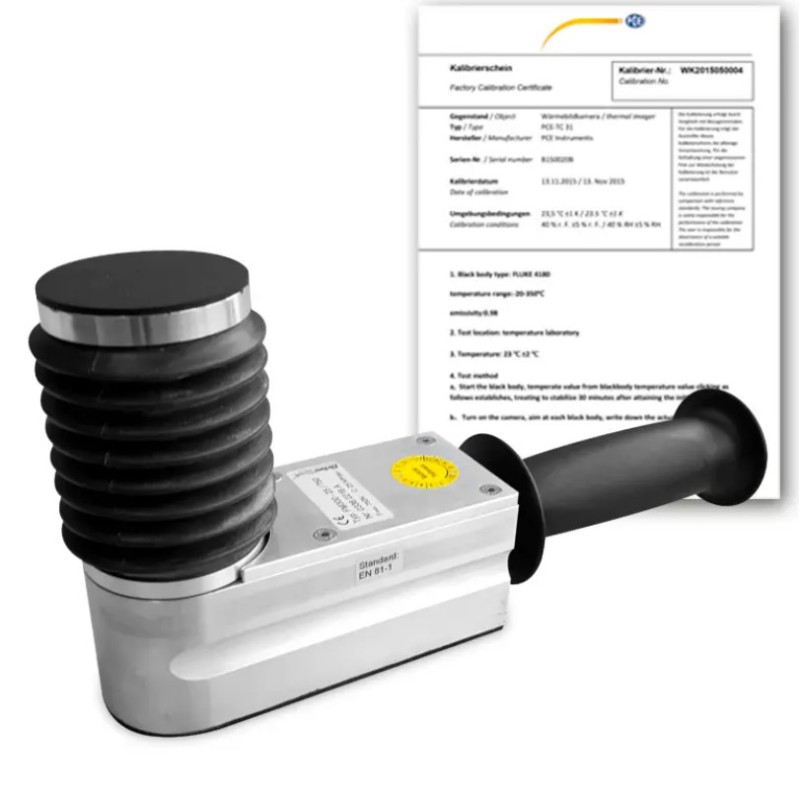

Wireless closing force measurement system for automatic elevator doors and machine protection devices.
Specification:
| FM300 BT | Bluetooth |
| Measuring range | 0 ... 750 N |
| Accuracy | +/– 3 N or 3 % of reading |
| Stiffness | 25 N/mm |
| Gap width | 145–510 mm / 5.7-20" (incl. extension set) |
| Diameter | 58 mm / 2.2" |
| Measuring principle | DMS transducer |
| Dimensions | 280 x 145 x 82 mm / 11.0 x 5.7 x 3.2" |
| Weight | 1.2 kg / 2.6 lb |
| PC evaluation software Pinch Pilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of important parameters | |
| - Evaluation according to different guidelines (standards) | |
| - Possibility of entering self-defined guidelines | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| App downloadable from the Google Play Store | |
| - Force Meter - an easy-to-use app with automatic guidelines and standards updates | |
| - Time-saving - immediate feedback on the measurement result including simpler report generation | |
| - Paperless office - reduces paper and the associated costs and protects the environment | |
| - Can be used individually - integration of the customer's signature possible | |
Delivery Scope:
1 x Closing force transducer FM300 BT
1 x App Force Meter available for download
1 x Software Pinch Pilot (USB stick)
1 x PC connection cable (USB)
1 x Manual
1 x Transport case with foam insert
1 x ISO calibration certificate
