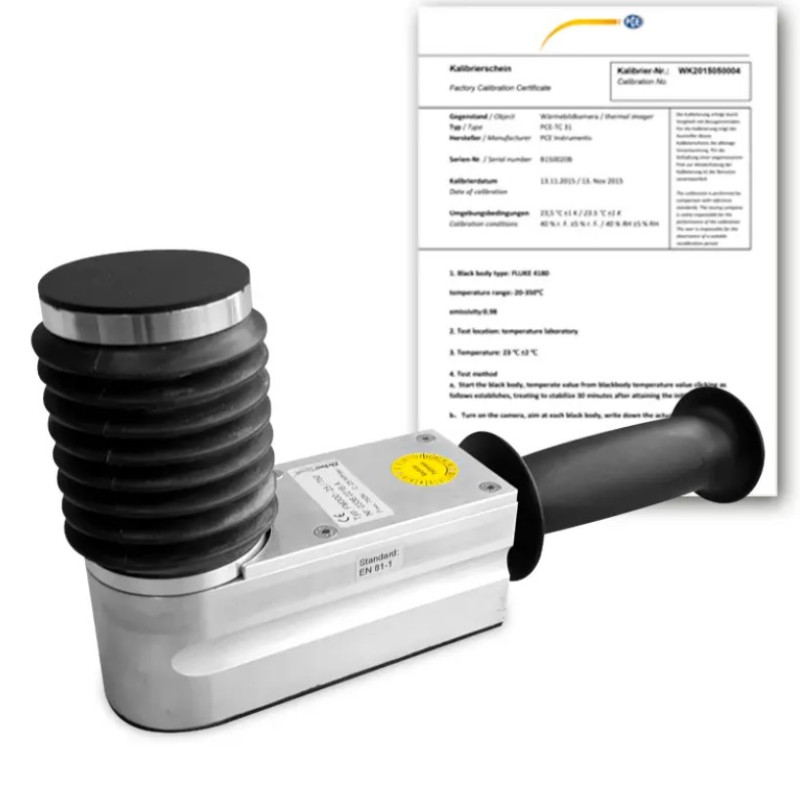

Closing Force Measuring Device FM300 for elevator doors in Pakistan
- Brand: PCE Instruments Germany
- Product Code: FM300-SY-25-750
- Availability: Pre-Order
-
Rs.0
Closing force measurement system for elevator doors.
Specification:
| FM300 | |
| Measuring range | 0 ... 750 N |
| Accuracy | +/– 3 N or 3 % of reading |
| Stiffness | 25 N/mm |
| Gap width | 145–510 mm / 5.7-20" |
| Diameter | 58 mm / 2.2" |
| Measuring principle | DMS transducer |
| Dimensions | 290 x 140 x 60 mm / 11.4 x 5.5 x 2.3" |
| Weight | 1.7 kg / 3.7 lb |
| Display device SEB2 | |
| - Display device SEB2 data logger unit with LCD display | |
| and LED status indicators, control button, serial interface | |
| - Optional PC-controlled measurement | |
| - 9 V battery supply | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak display | |
| - Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of the standard-relevant characteristic values | |
| - Evaluation according to different guidelines possible | |
| - Custom policy adjustable | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| - Optional measuring point identification | |
Delivery Scope:
1 x Closing force measuring device FM300 with 2.5 m connection cable
1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display,
Membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software Pinch Pilot and documentation
1 x Manual
1 x ISO Calibration Certificate
