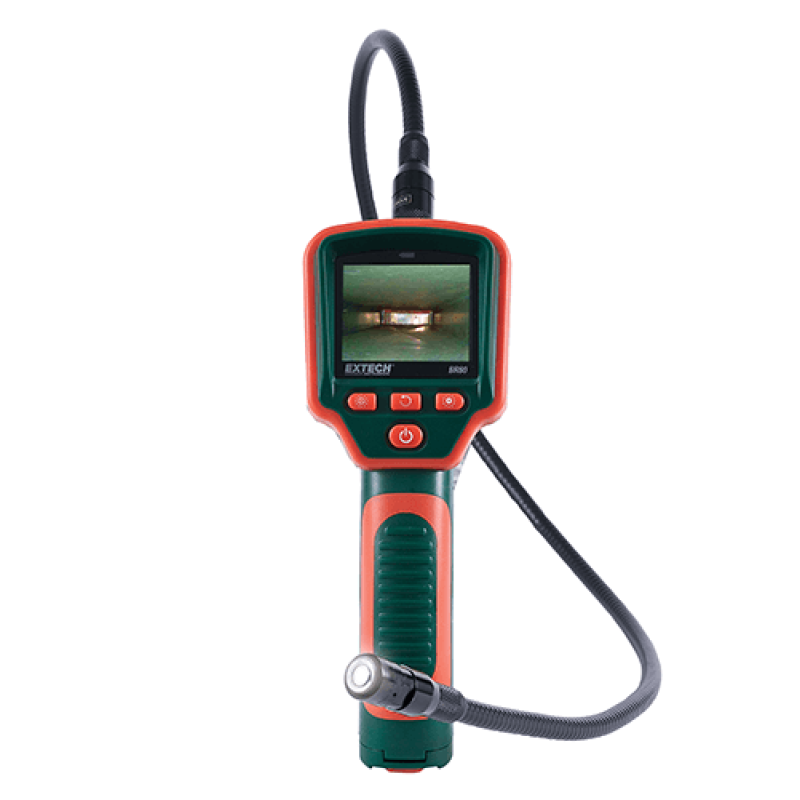

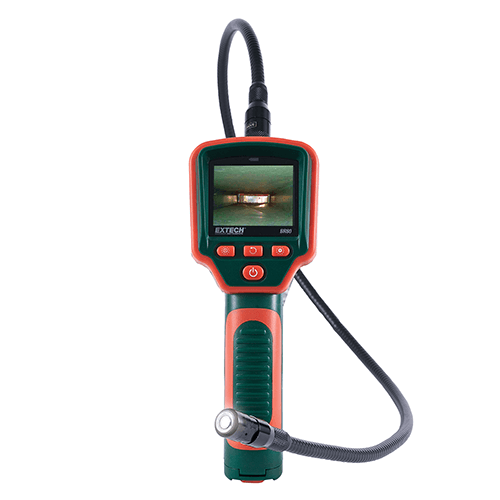

Extech BR80 Video Borescope Inspection Camera

17mm camera diameter and 2.4" Color TFT LCD Monitor

The BR80 video borescope camera features a compact handheld design that makes it easier to detect, diagnose, and solve inspection problems. The BR80 features a lightweight, waterproof (IP67) 17 mm camera diameter camera head with a 39 in. (1-meter) flexible goose neck cable which retains its configured shape. 2 bright LED lamps with dimmer help to illuminate viewed objects. Comes with 17 mm camera probe with cable, 4 AA batteries, extension tools (mirror, hook, and magnet), and user manual.

Video Borescope Inspection Camera Features:

• 17mm diameter camera head with 39" (1m) flexible gooseneck cable retains configured shape
• Lightweight, handheld design to easily find, diagnose, and solve problems
• Waterproof camera head with four bright LED lamps to illuminate viewed object
• Glare-free close-up field of view
• Vivid 2.4" color LCD monitor for detailed images plus 180° image rotation feature
• Optional 37.5" (0.95m) BRC-EXT extension cable for increasing viewing depth (19mm diameter connector)
• Complete with 17mm camera probe, 4 AA batteries, and extension tools (mirror, hook, and magnet)

Specifications                                      Range
Camera
Viewing direction                          Viewing Angle 72°
Focus point                                     2 to 6" (5 to 15cm)
Shaft diameter                               0.66" (17mm)
Working length                              39" (1m)
Minimum bend radius                  2.36" (60mm)
Monitor
LCD Screen Type                            2.36" TFT
Pixels                                               480 x 234
Dimensions                                    8.3 x 3.3 x 2.4" (211 x 83 x 61mm)
Operating                                       approx. 1.5 hours
Weight                                            10oz (284g)
