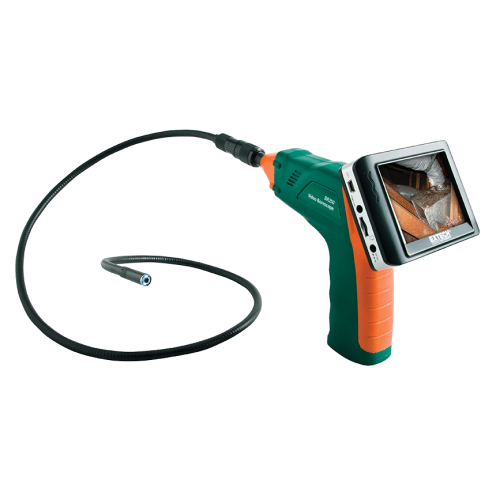

Extech BR250 Video Borescope/Wireless Inspection Camera

9mm camera diameter and 3.5" Color TFT LCD Wireless Monitor

BR250 is a Video Borescope Inspection Camera with 9 mm camera diameter and 3.5 inch color TFT LCD Monitor. Ideal for Home Inspection (Inspect in walls for mold, insect infestation, electrical wire or water pipe location); HVAC ( Inspect inside ducts, behind motors and compressors); Automotive (View inside or around engines and transmissions); Industrial (Inspect weld integrity, process equipment, gears, molding machines);

Video Borescope/Wireless Inspection Camera Features:

• Includes 2GB microSD memory card for capturing images (JPEG) or video (AVI) for viewing on your PC
• Detachable wireless color display can be viewed from a remote location up to 32ft (10m) from measurement point
• 39" (1m) flexible gooseneck with waterproof camera (9mm diameter) and 4 built-in bright LED lights for illuminating dark areas
• Captured videos and images can be viewed on the wireless monitor or transferred to your PC via the microSD card or USB cable
• Menus in 10 languages: English, Chinese, German, French, Spanish, Portuguese, Italian, Japanese, Dutch, and Russian
• Complete with 4AA batteries, rechargeable display battery, microSD card with adaptor, USB and video cable, extension tools, 100-240V AC adaptor, stand and case

Specifications                                          Range
Camera
Pixels                                                    712 x 486 (NTSC)
Transmission Frequency                  2.4GHz
Transmission Range                          32ft (10m) unobstructed view
Viewing direction                              Viewing Angle 50°
Focus distance from object             5.9" to 9.8" (15 to 25cm)
Shaft diameter                                   9mm
Working length                                  36" (0.9m)
Minimum bend radius                      2.36" (60mm)
Handle Dimensions                           7.3 x 5.7 x 1.6" (186 x 145 x 41mm)
Weight                                               18.7oz (530g)
Monitor
LCD Screen Type                              3.5" TFT
Pixels                                                 320 x 240
Video Output Level                         0.9 to 1.3V@75Ω
Frame Rate                                      10, 15, 20, 25, 30FPS
Video Resolution                            960 x 240 (avi format)
Image Resolution                           640x 480 (jpeg format)
Monitor Dimensions                      3.9 x 2.7 x 1" (100 x 70 x 25mm)
Operating/Charge Time                1.5 hours/3 hours
Weight                                             4.9oz (140g)
